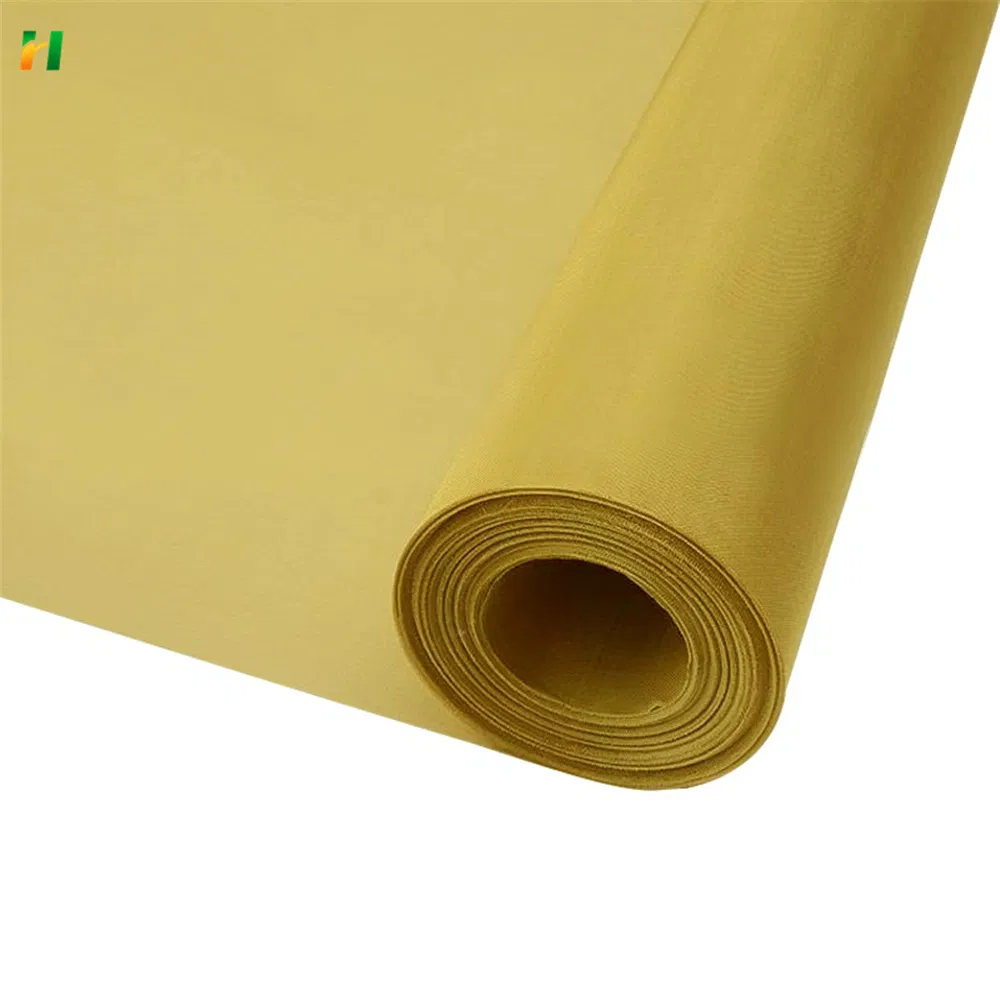

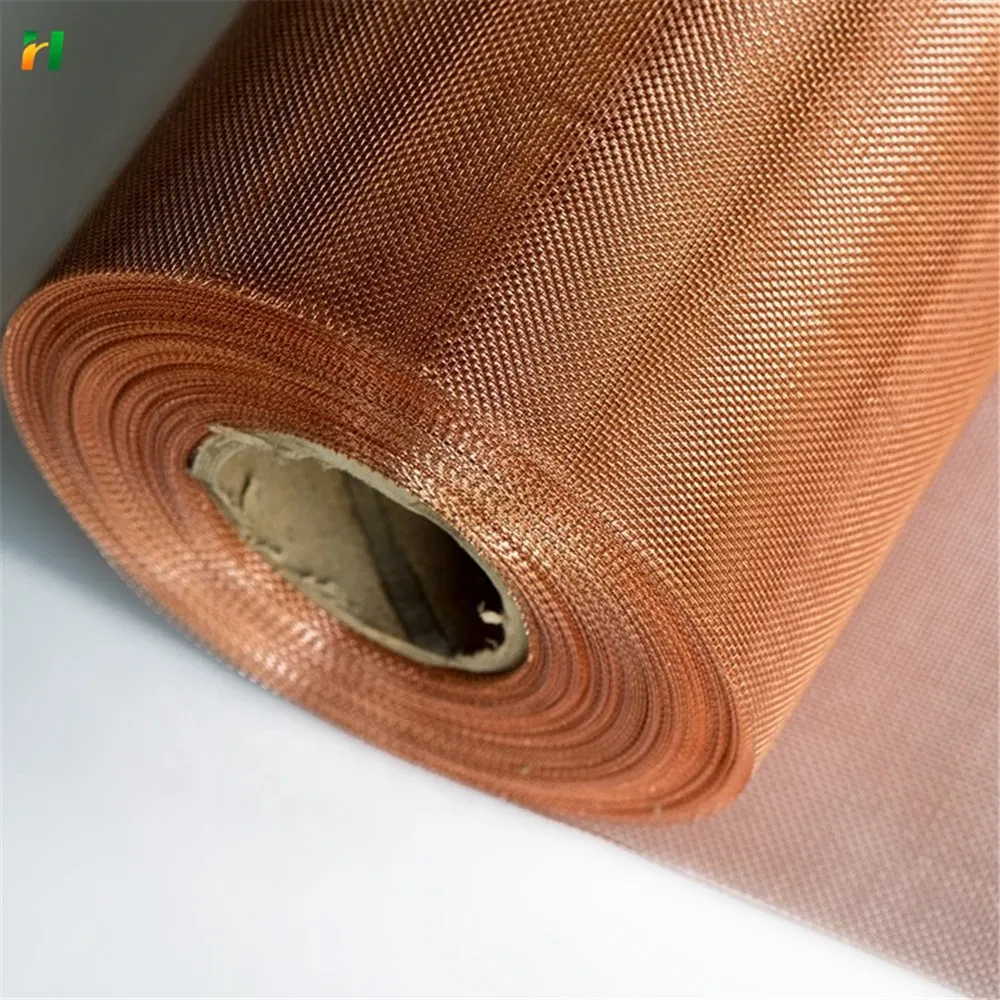

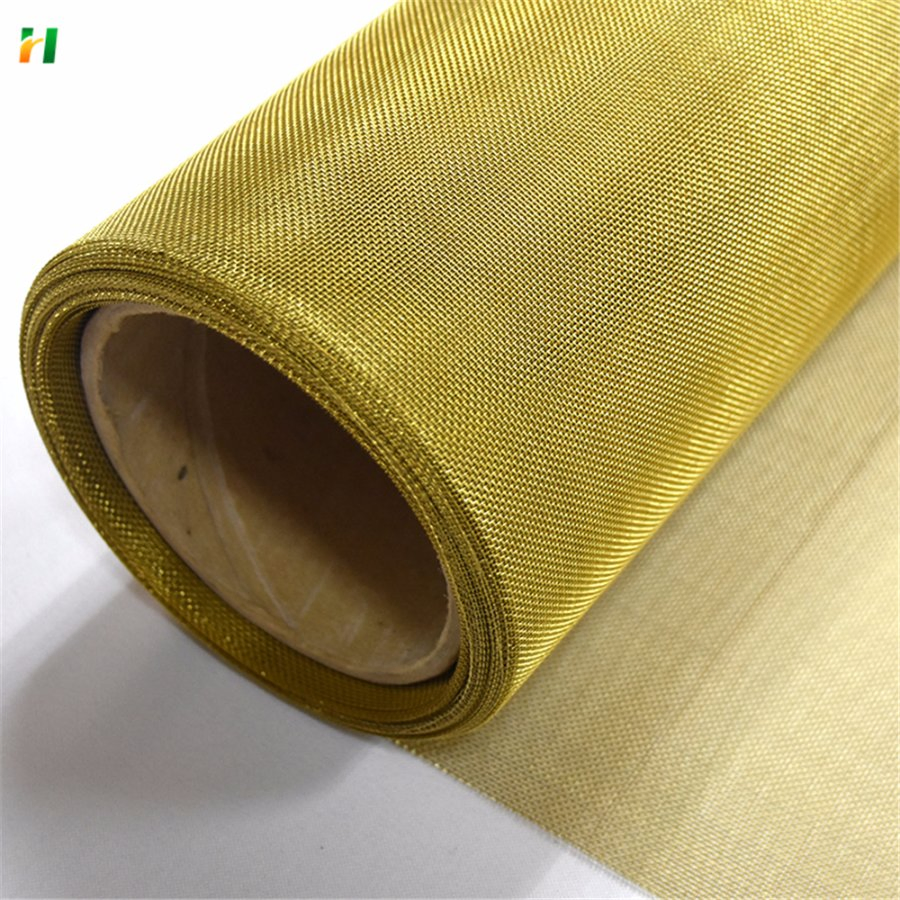

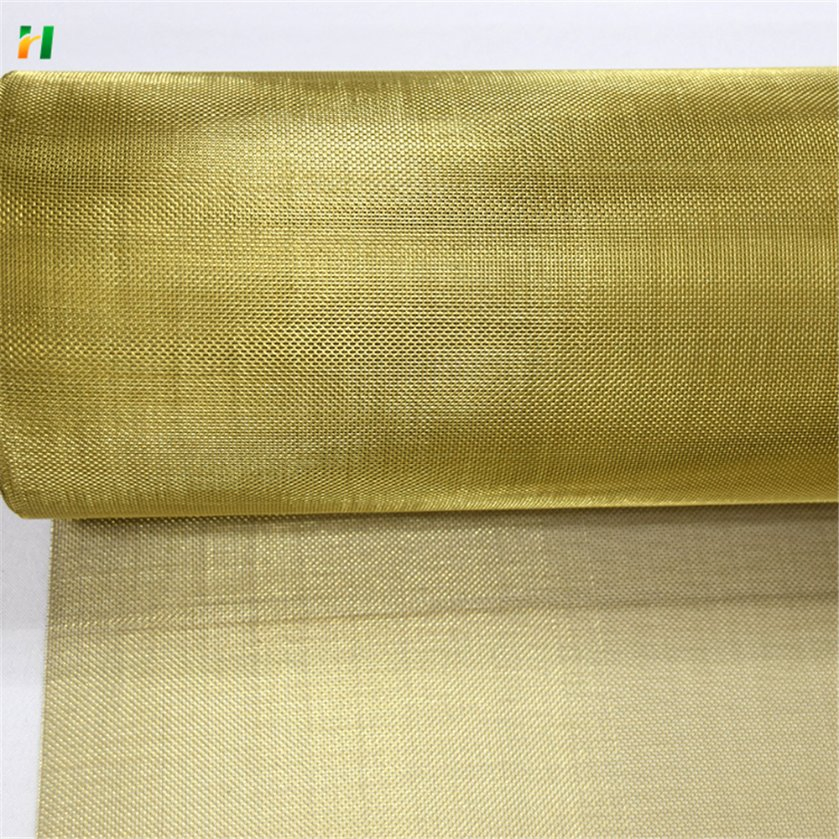

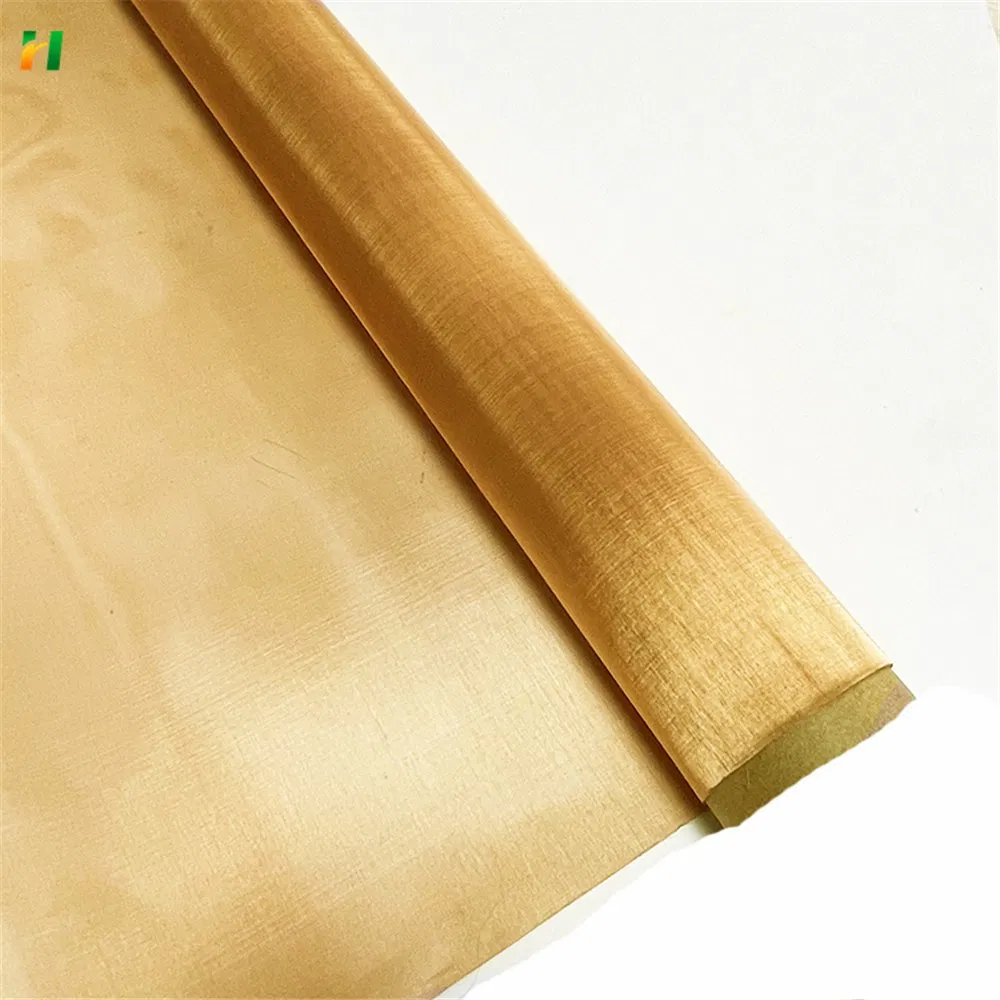

China Factory Supply Brass Material Woven Wire Filter Mesh for Gas/Liquid Filter Mesh 200 Mesh
China Factory Supply Brass Material Woven Wire Filter Mesh for Gas/Liquid Filter Mesh 200 Mesh
China Factory Supply Brass Material Woven Wire Filter Mesh for Gas/Liquid Filter Mesh 200 Mesh
China Factory Supply Brass Material Woven Wire Filter Mesh for Gas/Liquid Filter Mesh 200 Mesh
China Factory Supply Brass Material Woven Wire Filter Mesh for Gas/Liquid Filter Mesh 200 Mesh
1 / 5
China Factory Supply Brass Material Woven Wire Filter Mesh for Gas/Liquid Filter Mesh 200 Mesh
China Factory Supply Brass Material Woven Wire Filter Mesh for Gas/Liquid Filter Mesh 200 Mesh
China Factory Supply Brass Material Woven Wire Filter Mesh for Gas/Liquid Filter Mesh 200 Mesh
China Factory Supply Brass Material Woven Wire Filter Mesh for Gas/Liquid Filter Mesh 200 Mesh
China Factory Supply Brass Material Woven Wire Filter Mesh for Gas/Liquid Filter Mesh 200 Mesh

China Factory Supply Brass Material Woven Wire Filter Mesh for Gas/Liquid Filter Mesh 200 Mesh

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.:Cu
Type:Primary Filter
Woven Type:Plain, Twill or Dutch Weave
Mesh:6-200mesh
Sample:Provide
HS Code:7419994000
Specification:1x30m
Capacity:3000 Rolls/Day

Key Applications

Liquid Filtration, Screening, Solid-Liquid Separation, Gas-Liquid Separation, Dry Filtration, Dustproof, Gas Filtration, Porcelain Printing, Decorative Wire Mesh.

Product Description

Brass & Copper Wire Mesh is woven by copper wires in different warp and weft, usually with square holes. It is widely used to screen various particles, powder, porcelain clay, glass, and for porcelain printing or filtering liquid and gas.

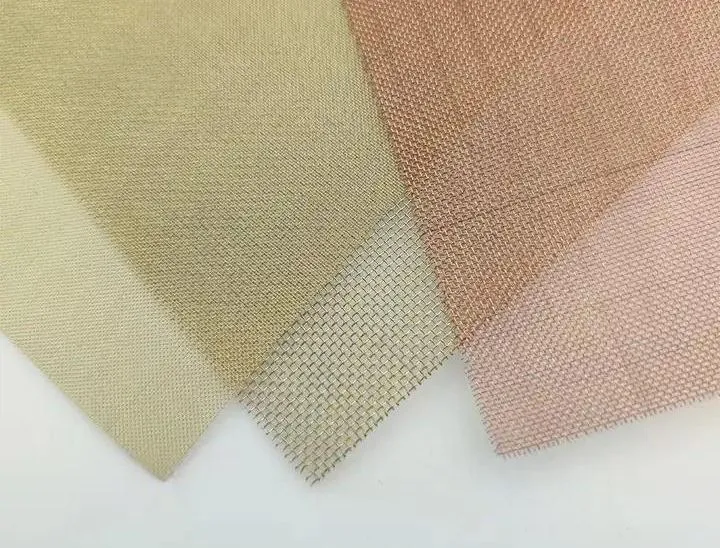

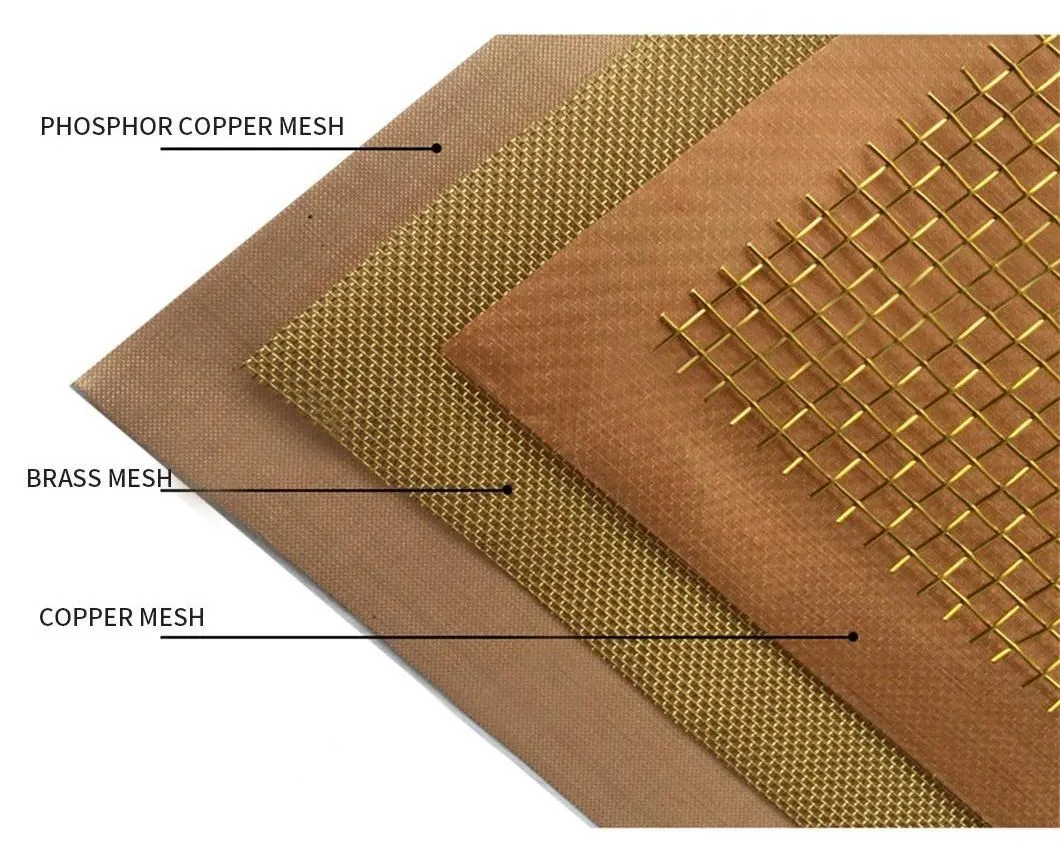

Brass Material Woven Wire Filter Mesh Wire Mesh Specification View

Technical Specifications

  • Material: Brass Wire & Copper Wire
  • Weaving Type: Plain, Twill, Dutch Weave
  • Mesh Count: 6 - 200 mesh/inch
  • Feature: Non-Magnetic, High Ductility
  • Feature: Wear Resistance, Fast Heat Transfer
  • Customized: Available upon request
Mesh Wire Dia. Opening (mm)
SWG mm inch
6 mesh220.7110.0283.522
8 mesh230.6100.0242.565
10 mesh250.5080.0202.032
12 mesh260.4570.0181.660
14 mesh270.4170.0161.397
16 mesh290.3450.0141.243
20 mesh300.3150.01240.955
30 mesh320.2470.0110.573
40 mesh360.1930.00760.442
50 mesh370.1730.00680.335
60 mesh370.1730.00680.250
80 mesh400.1220.00480.196
100 mesh420.0120.0040.152
200 mesh470.0510.0020.076

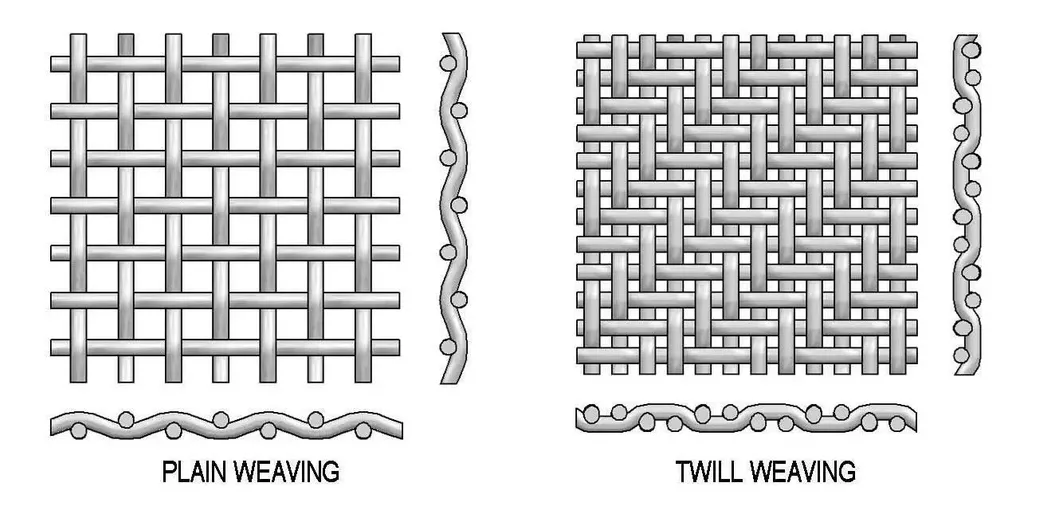

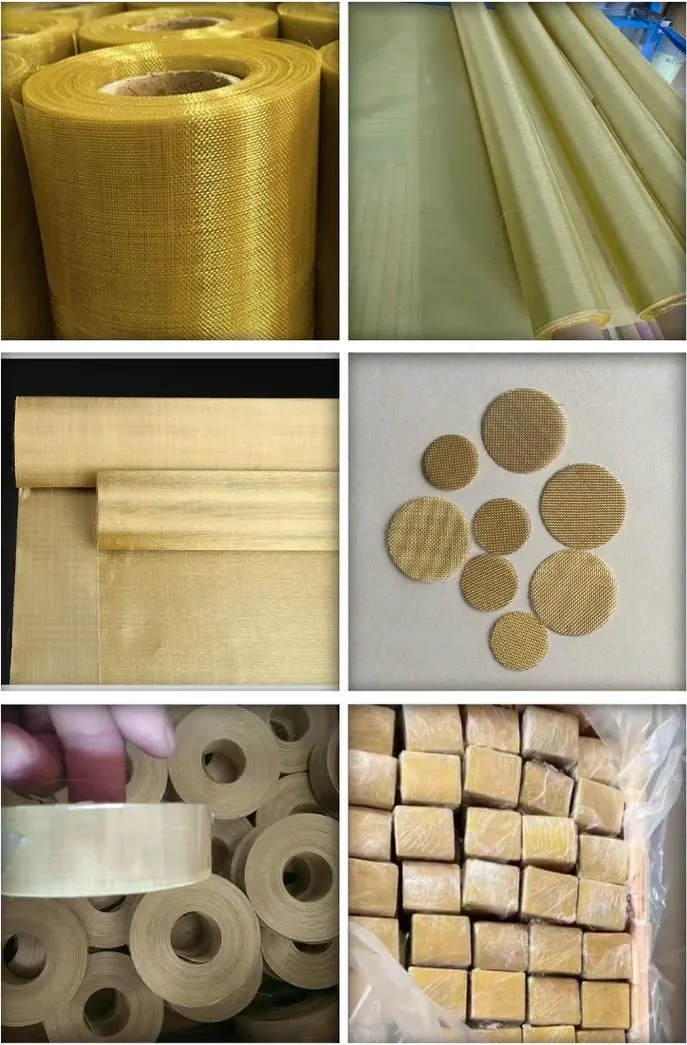

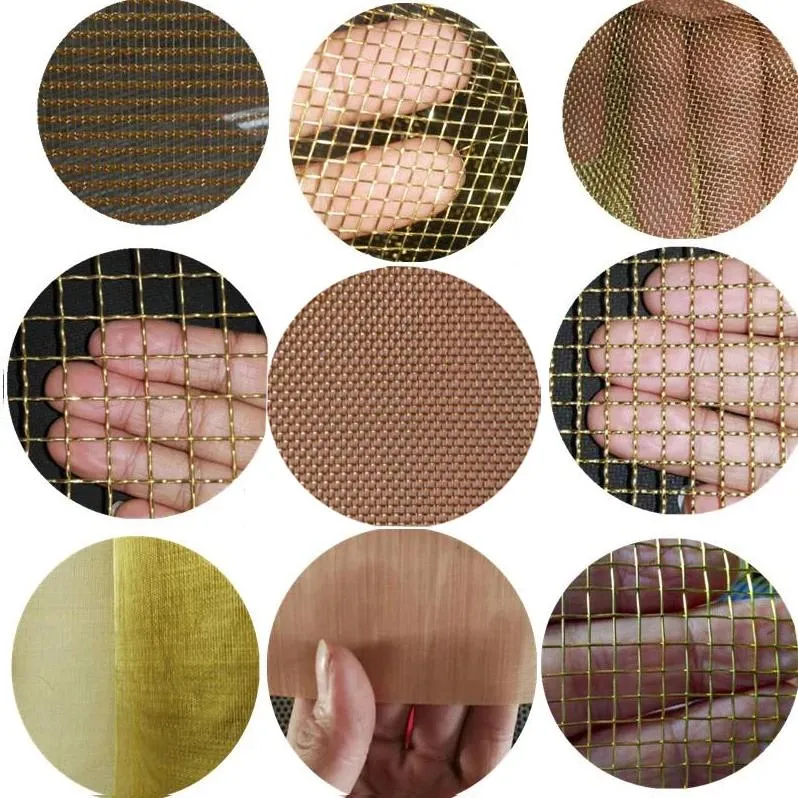

Mesh Details Close up Filter Mesh Various Products

Packaging & Delivery

Package Size:120.00cm * 20.00cm * 20.00cm
Gross Weight:45.000kg
Packing:Moisture-proof paper, Woven bags, Wooden box
Delivery Time:10-20 days (Depends on quantity)

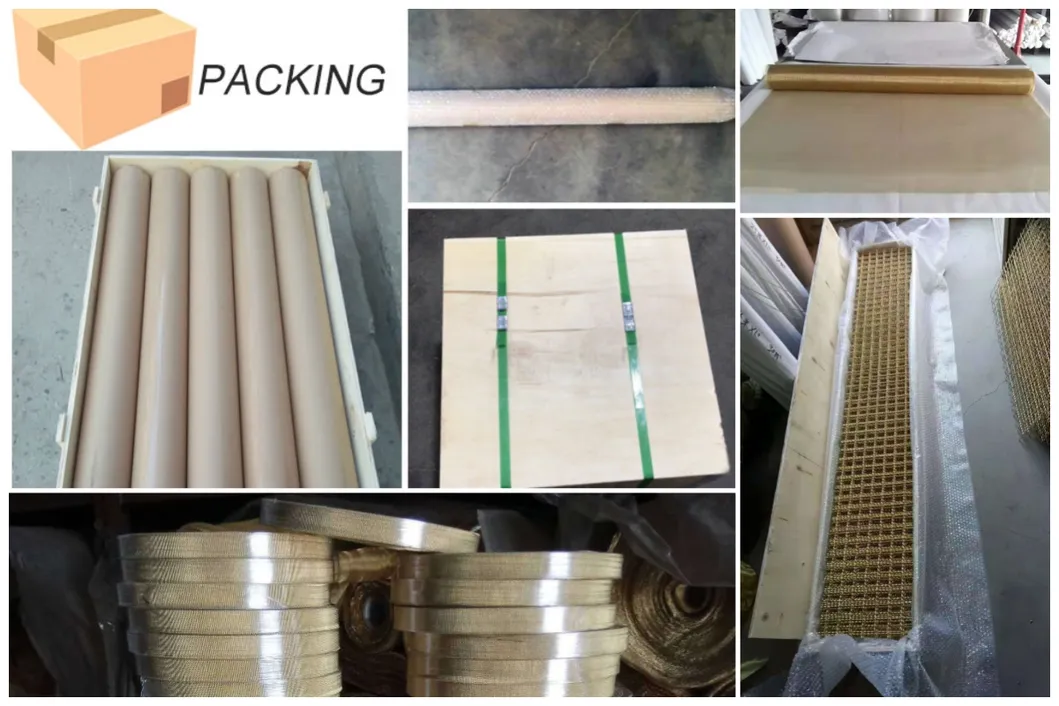

Packaging and Delivery Factory Warehouse

Frequently Asked Questions

What materials are used for this wire mesh?
The mesh is primarily manufactured using high-quality Brass Wire and Copper Wire.
What is the range of mesh counts available?
We provide a wide range of mesh counts from 6 mesh per inch up to 200 mesh per inch.
What are the primary features of Brass and Copper mesh?
Key features include being non-magnetic, having excellent ductility, wear resistance, fast heat transfer, and superior electrical conductivity.
What weaving types do you offer?
We offer three standard weaving types: Plain Weave, Twill Weave, and Dutch Weave.
How is the product packaged for long-distance transport?
Rolls are typically wrapped in moisture-proof paper and woven bags, then secured in sturdy wooden boxes to prevent damage.
Are customized specifications available?
Yes, we can provide customized dimensions and mesh specifications to meet your specific application requirements.
