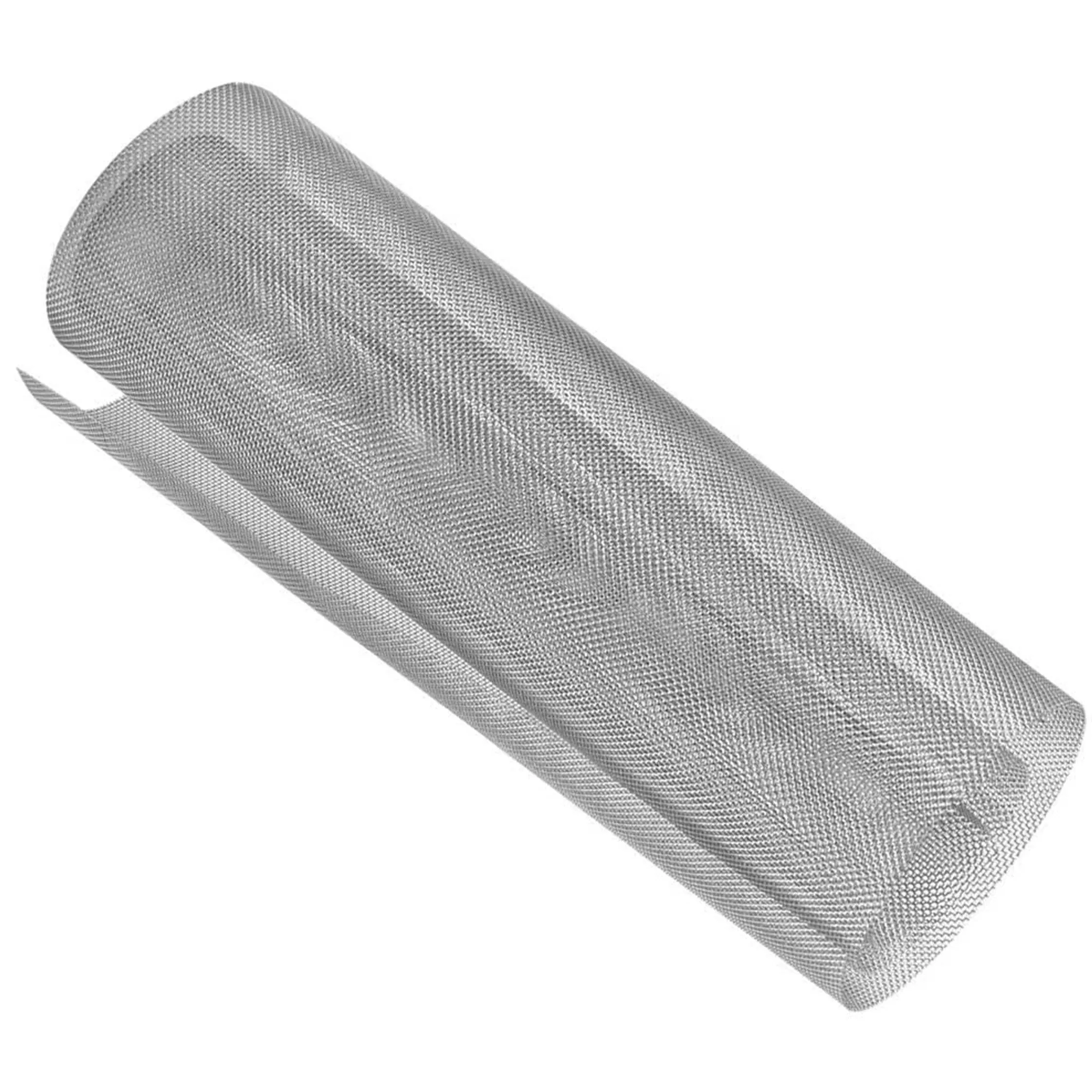

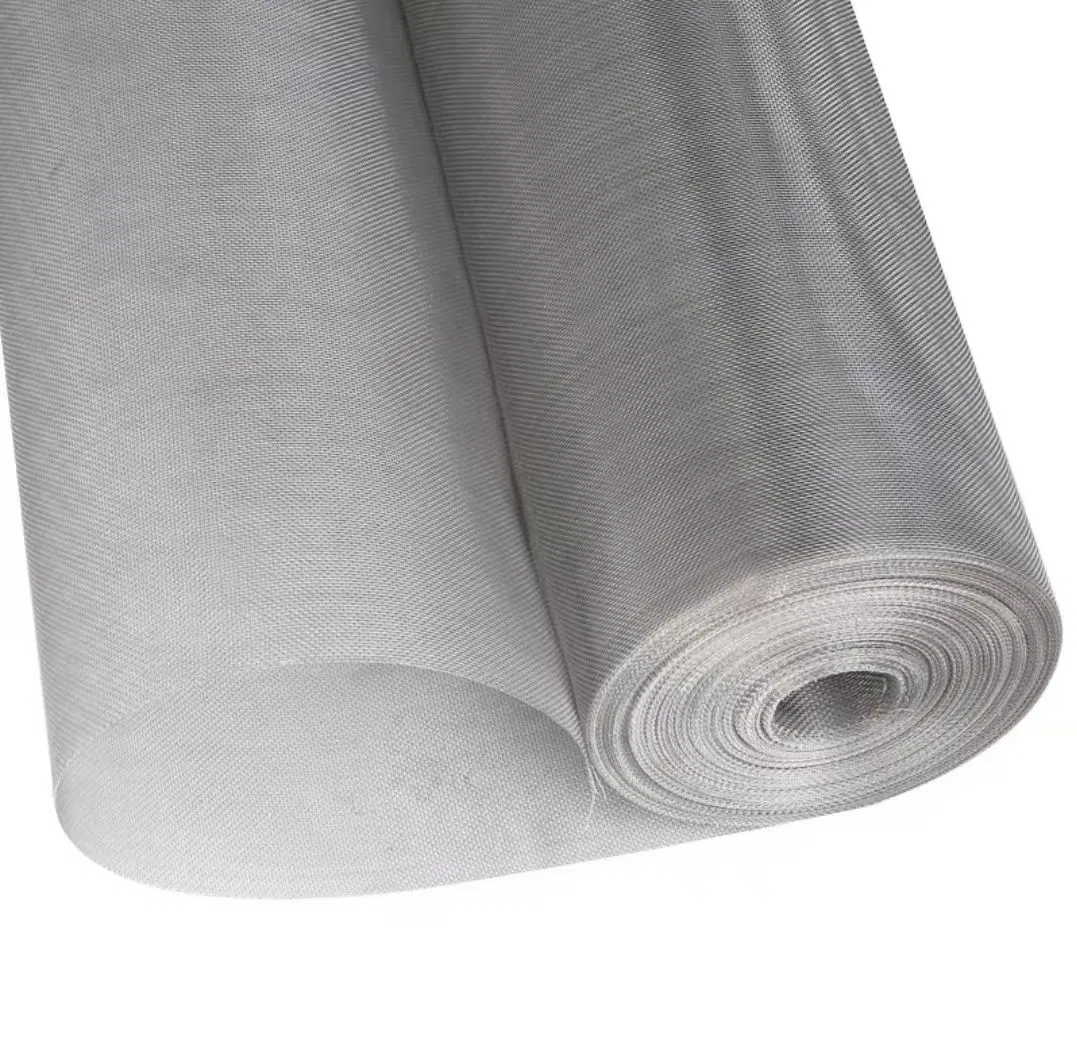

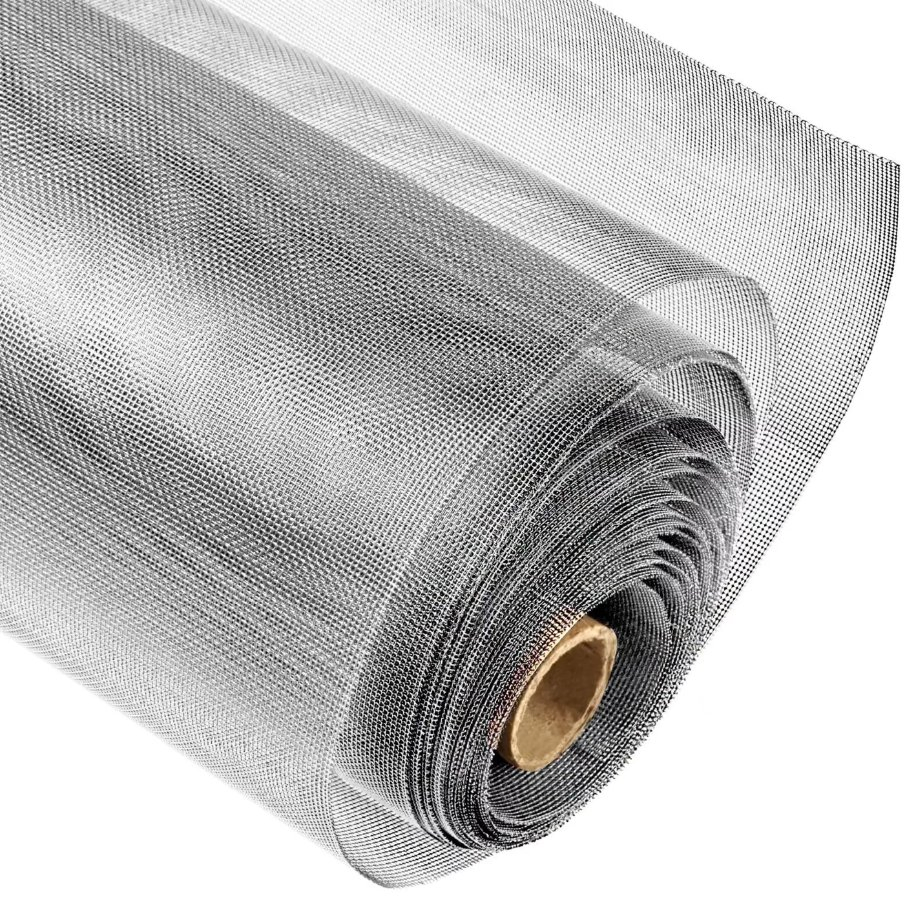

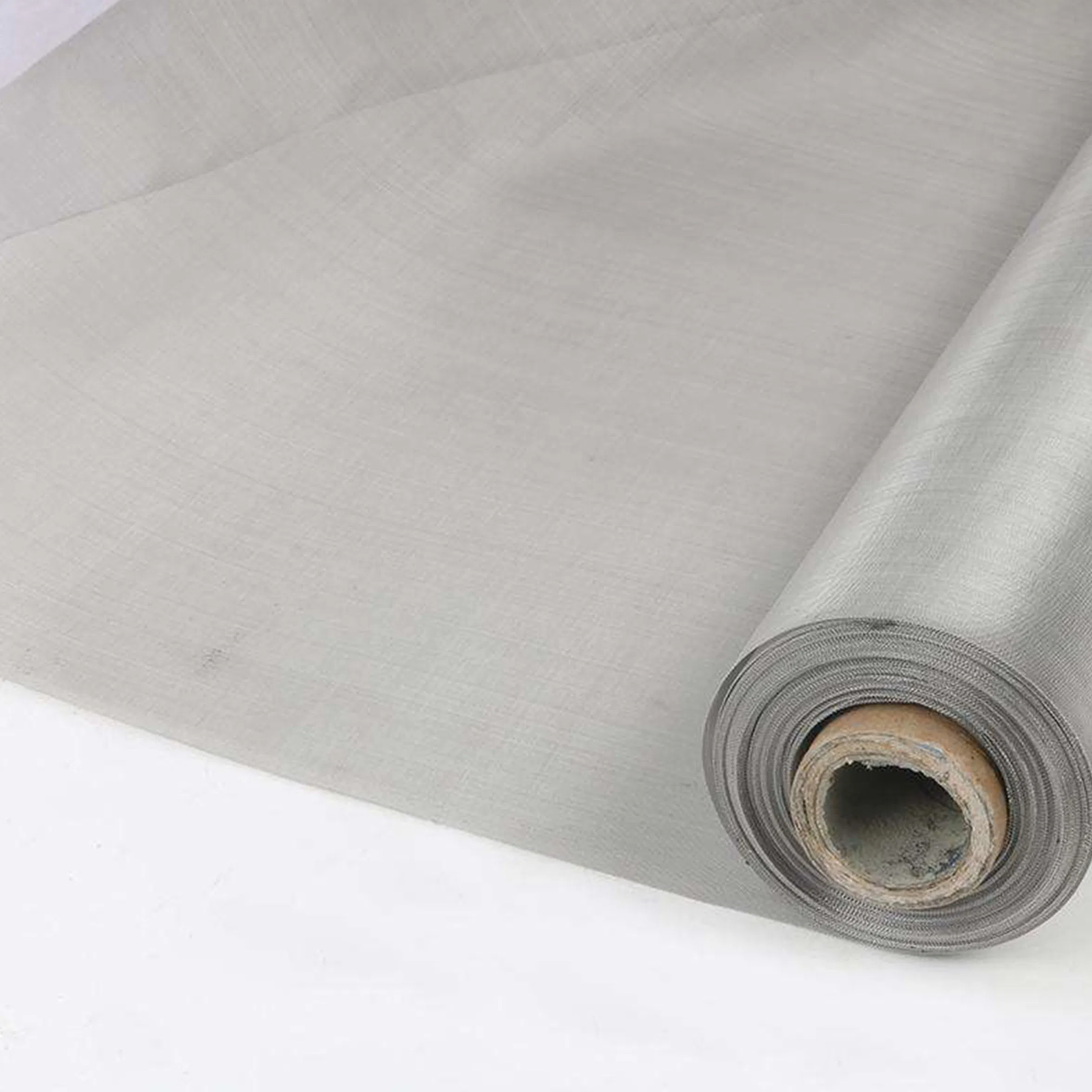

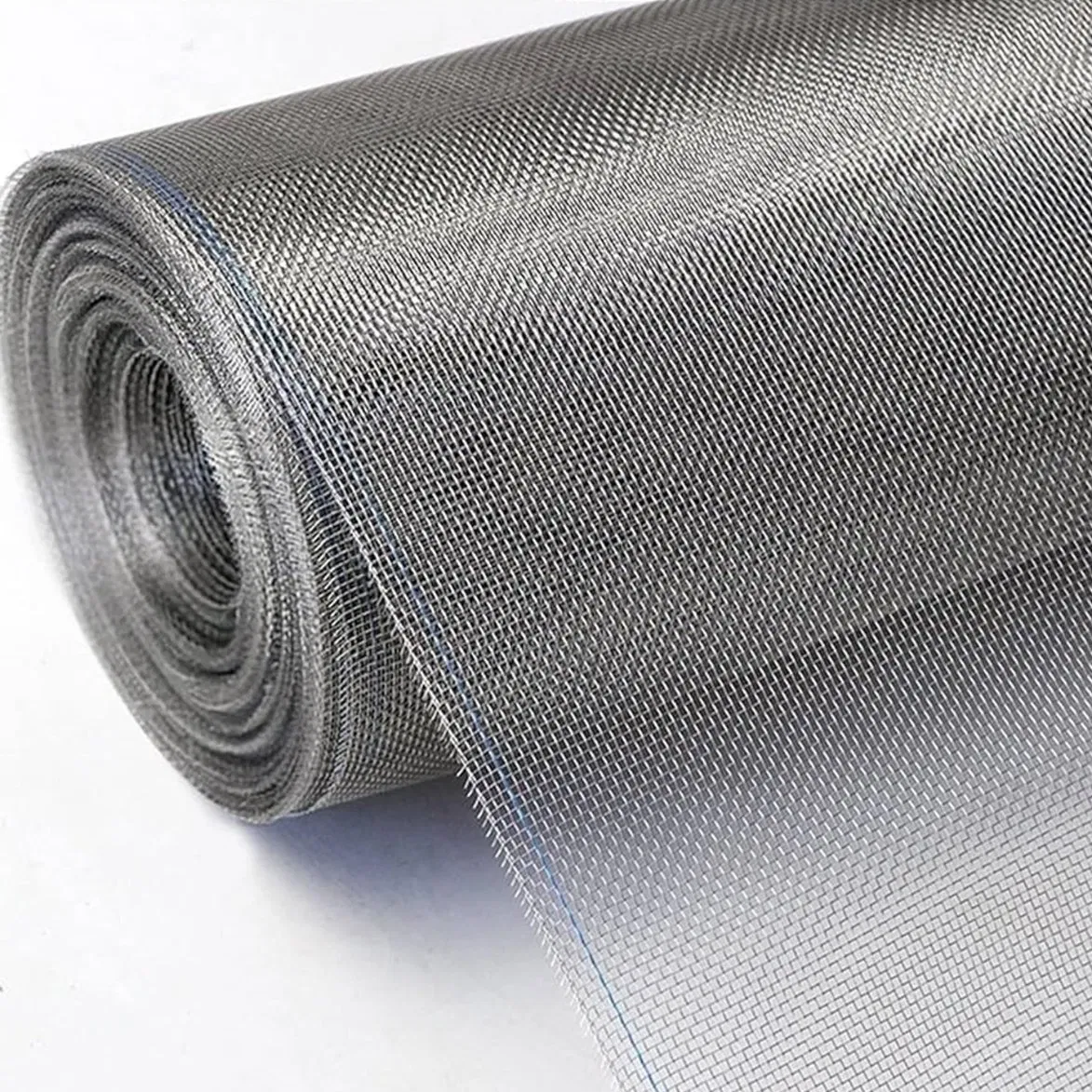

100/150/180/200 Mesh Ss 304 316 316L Stainless Steel Woven Wire Mesh

📋

Basic Specifications

Model NO.

TJ-A02

Material

SUS304

Hole Shape

Square

Type

Stainless Steel Plain Wire Mesh

Weave Technique

Plain Weave

Width

0.1-5m Width

Certification

ISO9001

Character

Corrosion & Heat Resistance

🛡️

Product Introduction

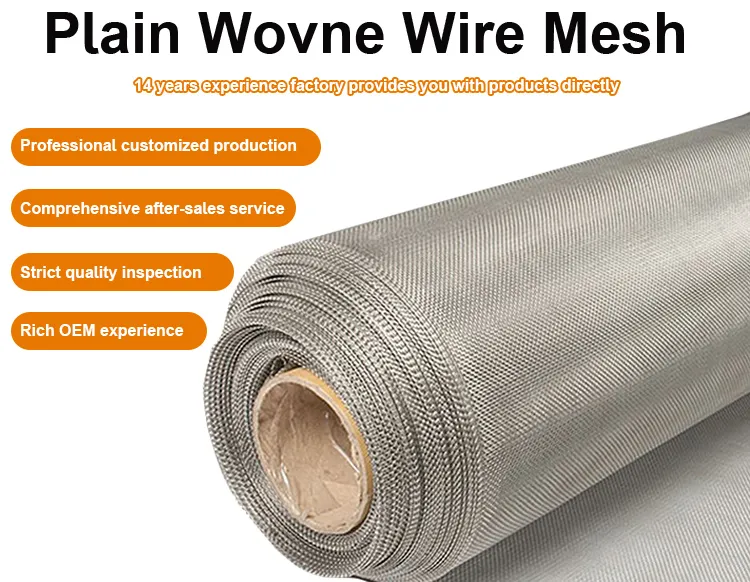

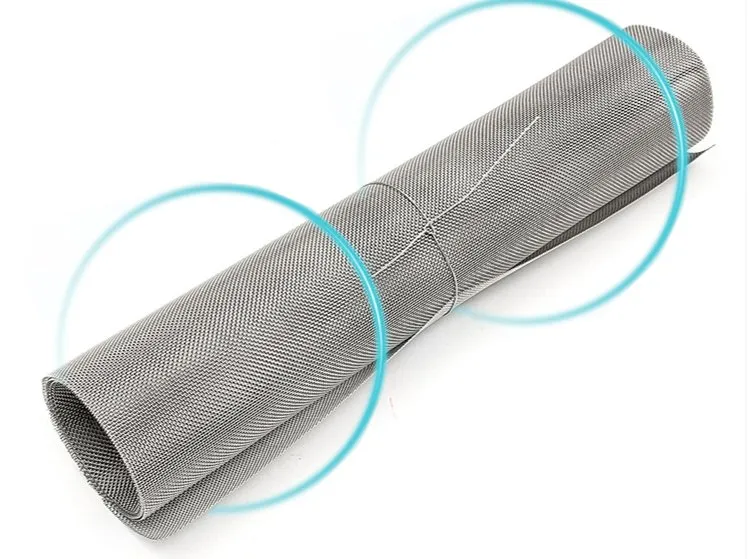

Stainless Steel Wire Mesh, also known as Stainless Steel Wire Cloth, is a versatile and durable material manufactured by weaving or welding high-grade stainless steel wires into various patterns. Renowned for its exceptional strength, corrosion resistance, and longevity, it serves as a critical component across countless industrial, commercial, and architectural applications.

Superior Resistance

Made from chromium-nickel alloys (e.g., 304, 316), it withstands harsh environments, moisture, and chemicals.

High Strength

Offers excellent tensile strength and resistance to abrasion, impact, and extreme temperatures.

Hygienic Design

Non-porous, smooth surface prevents bacterial growth and allows for easy sterilization.

Fire Proof

Inherently fireproof, adding a safety benefit for architectural and industrial settings.

📊

Technical Parameters

Name	Stainless steel wire mesh
Material	304, 316L, 310s, 904L etc.
Wire Diameter	0.02-2.0mm
Mesh Size	2 -- 635 mesh / 1 inch
Width	1m, 1.2m, 1.3m, 1.5m (Customizable)
Length	30m or customized
Weaving Type	Plain / Dutch / Twill weave

🕸️

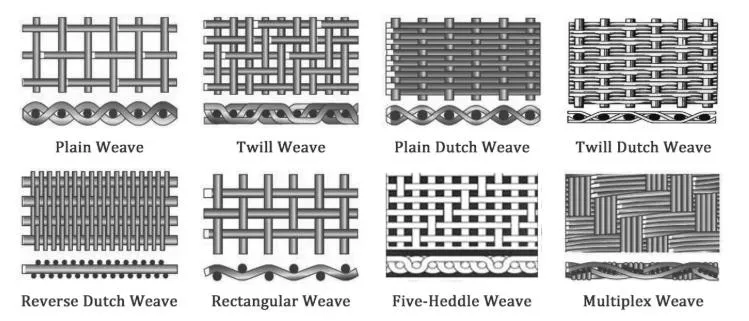

Woven Types Available

1. Plain Weave: Simple criss-cross pattern; each weft thread crosses the warp threads by going over one, then under the next.

2. Twill Weave: Each weft yarn floats across the warp yarns in a progression forming a distinct diagonal line (wale).

3. Plain Dutch: Similar to plain weave, but weft and warp wires have different diameters and mesh sizes.

4. Twill Dutch: Similar to twill weave with varying diameters for high-density filtration.

5. Reversed Dutch: Features thicker warp wires and fewer weft wires compared to standard Dutch weave.

🔍

Product Details & Applications

🏭

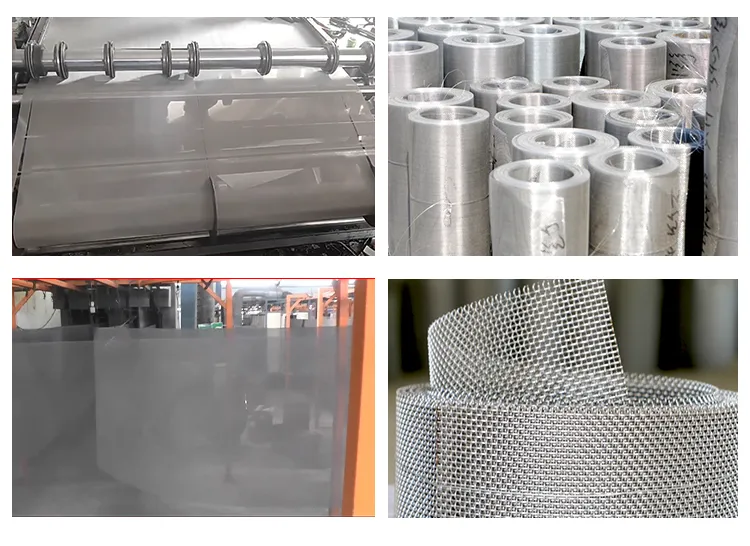

Manufacturing Excellence

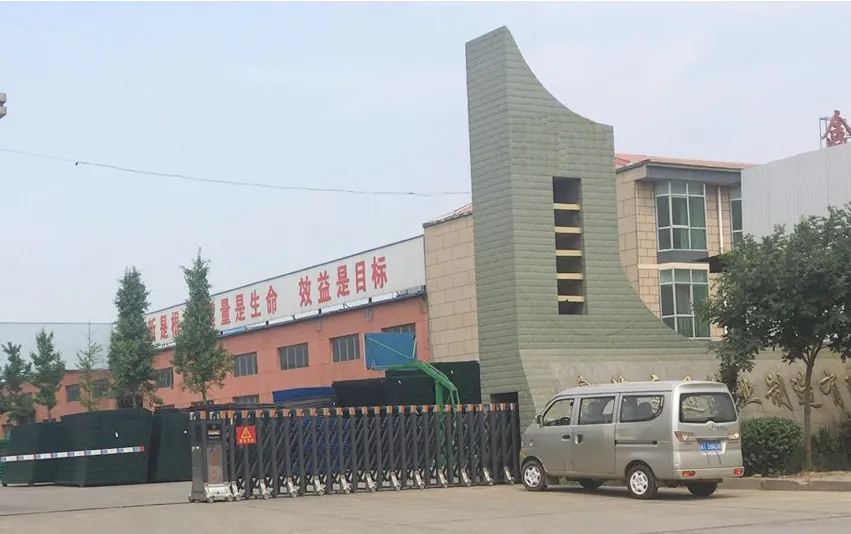

Located in a premier wire mesh production base, our enterprise integrates R&D, production, sales, and installation. Covering an area of 3500 square meters, we employ advanced production technology and strong research capabilities to provide suitable products or customized solutions to meet specific requirements.

❓

Frequently Asked Questions

Are you a manufacturer or a trader?

We are a specialized manufacturer of woven wire mesh. Established in 2014, we have grown into a comprehensive enterprise integrating production, R&D, and sales, committed to "quality first."

What products can I purchase from you?

We offer a wide range including stainless steel mesh, electric welding mesh, steel grid plates, braided mesh, guardrail mesh, zinc steel fences, fiberglass mesh, and various hardware products.

What is your typical lead time?

We maintain ample stock for standard materials, typically offering a one-week delivery time. For custom products, the delivery time is based on specific quantity and technical requirements.

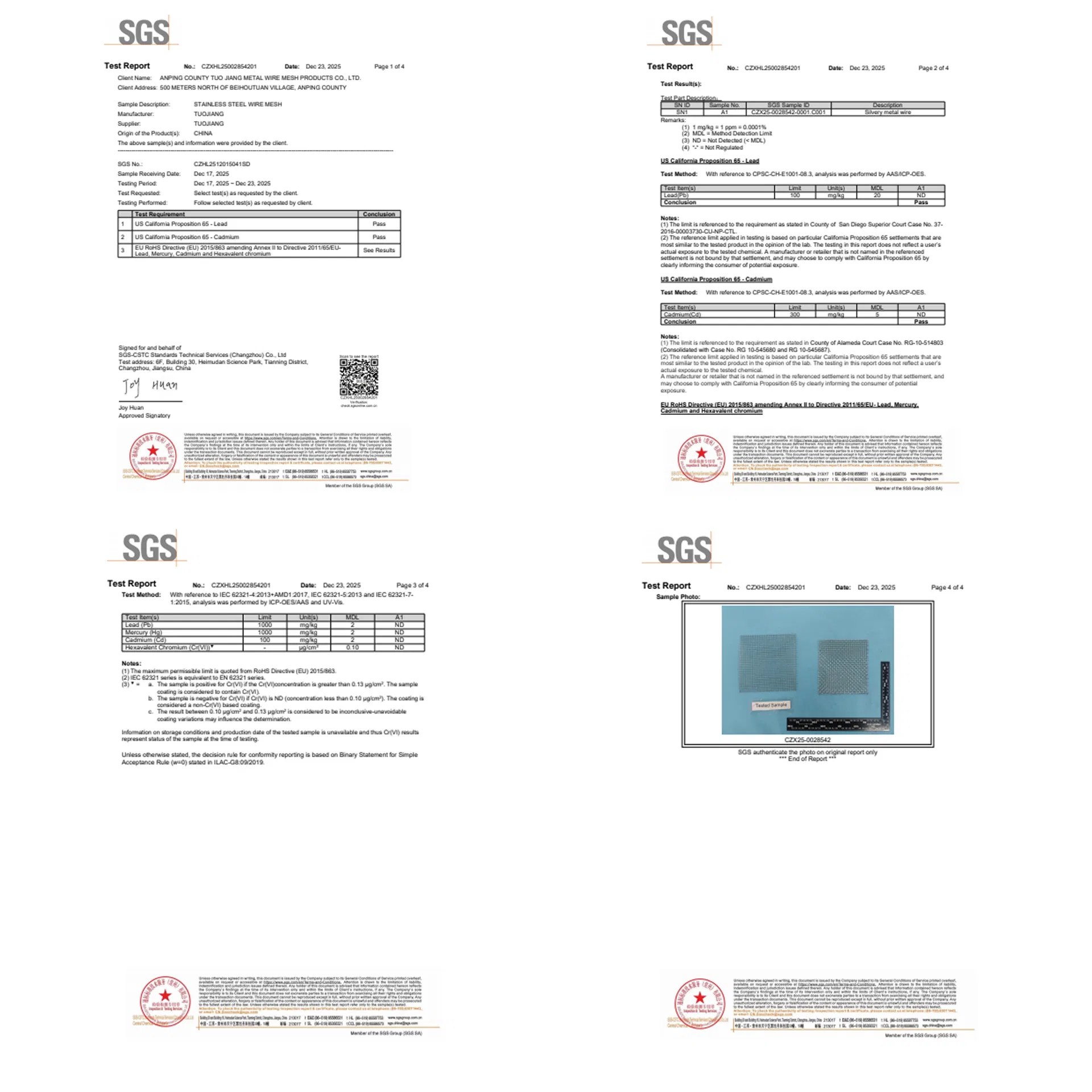

How do you ensure product quality?

We provide samples for testing to guarantee quality. Our operations adhere to a "Customer First" and "Reputation-Based" philosophy to ensure all requirements are met.

Can you provide samples for testing?

Yes, we would be pleased to supply samples for your evaluation and quality testing before placing a full order.

Do you offer customization for specific mesh sizes?

Absolutely. We can customize the wire diameter, mesh size, width, and weaving type to meet your specific industrial or architectural needs.
